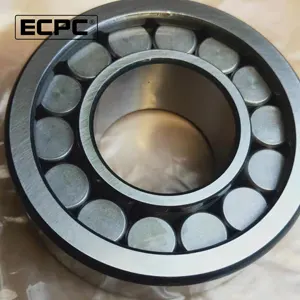

Bearing NJG2306VH is a basic and widely used item of Cylindrical Roller Bearing.

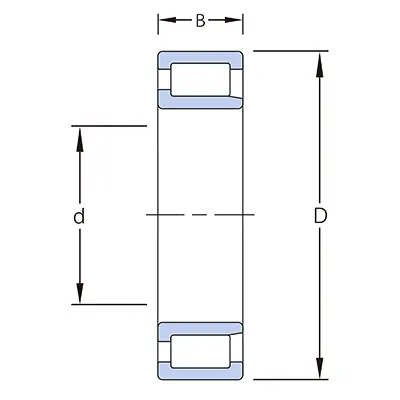

Basic Specifications
Part Number | NJG2306VH |
Bearing Type | Cylindrical Roller Bearing |
d - Inner Dia. | 30 mm 1.1811 in |
D - Outer Dia. | 72 mm 2.8346 in |
B - Width | 27 mm 1.063 in |
Load Ratings | Static 77.85 kN Dynamic 75.78 kN |
Reference Speed | 3600 rpm |
Weight | 0.56 kg 1.23 lbs |
Appendix
GOST Code / Cross reference P/N | N/A |
Grade | P0, P6, P5 RBEC 1, RBEC 3, RBEC 5 |
Clearance | CN or manufacture per order's specification. |
Other Manufacturers | SKF, NSK, NTN, FAG, KOYO, HRB, ZWZ, LYC |
Material | GCr15, 52100, 100Cr6, 1.3505 |
Cage | Depend on the suffix of Part Number. |
Packaging | Depend on order's requirements. |
Port | Shanghai, CHINA |
Other features | N/A |
